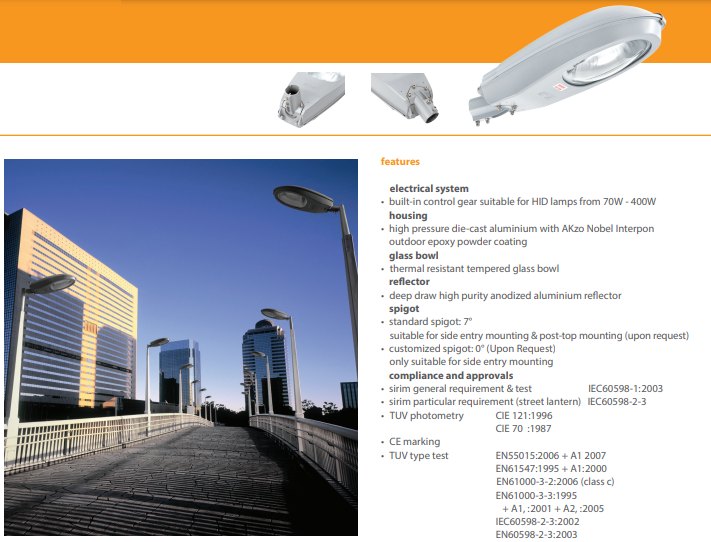

features

electrical system

• built-in control gear suitable for HID lamps from 70W – 400W housing
• high pressure die-cast aluminium with AKzo Nobel Interpon outdoor epoxy powder coating glass bowl
• thermal resistant tempered glass bowl reflector
• deep draw high purity anodized aluminium reflector spigot
• standard spigot: 7° suitable for side entry mounting & post-top mounting (upon request)
• customized spigot: 0° (Upon Request) only suitable for side entry mounting compliance and approvals
• sirim general requirement & test IEC60598-1:2003
• sirim particular requirement (street lantern) IEC60598-2-3
• TUV photometry CIE 121:1996, CIE 70 :1987
• CE marking
• TUV type test EN55015:2006 + A1 2007, EN61547:1995 + A1:2000
